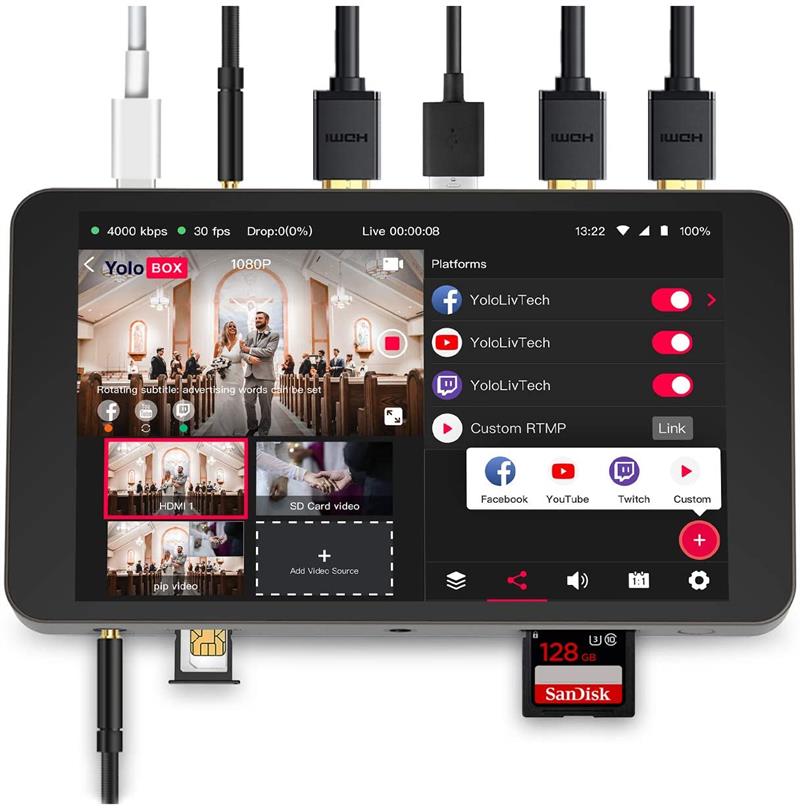

YOLOBOX, Multi-Camera Live Streaming Studio, Encoder Switcher Recorder Monitor All In One

<< Previous in Digital TV Equipment Next in Digital TV Equipment >>

Price: From $749.00 to $899.00
Manufacturer: YOLOLIV
Manufacturer Part No: YOLOBOX

Product Options

Small in Size... Big in Pro Capabilities!

A "MUST" for Institutions, Government, Churches, Schools, Organizations, Hospitality Facilities, Senior Care Centers, etc

The industry’s first REALLY All-IN-ONE Live Production Studio that doesn’t require anything external. It’s simple, portable, reliable and affordable.

  • Encoder, switcher, recorder, monitor, All-in-One
  • Live switch up to 6 video sources
  • No computer/desk workstation required
  • Great ease to operate, touchscreen control
  • Super portable, fit into your pocket
  • Support 4G LTE
  • Built-in battery - Live On the Go

Get started with 3 Simple Steps:

YoloBox helps you start live broadcasting events with unprecedented scale and effectiveness

Connect to the internet via Ethernet/WiFi/4G, sign up your YoloLiv account, then plug your camera into YoloBox, you are way to go.

YoloBox can acquire video from numerous sources including cameras, GoPro, drone, local library, etc.

Boost your viewership in cross-channels like Facebook, YouTube, Twitch, or any other RTMP(s) supported websites.

YoloLiv provides you an innovative experience of livestreaming
Yolobox is an intelligent solution which can be used in many diversified livestreaming activities, you can start your livestream from anywhere to anytime.

Whatever you live stream for, YoloBox will improve your overall production. Take a look at what makes YoloBox a fit for your use case.

With YoloBox you could livestream and record a sermon all yourself, no profesional team required, without the need for a big budget. Let YoloBox take your worship service beyond the bounds of the building to reach out more with your community.

Whether you’re working on a project for a corporation, organization or wedding, YoloLiv can make your livestream events easier by providing integrated live product. With reduced costs and setup times, YoloLiv allows you to add a new dimension to your business.

Livestreaming local government meetings ensures that all members of a community are able to "attend," whether they can be physically present or not.

From high school games to performance training to sports evaluation, YoloBox is a must-have in the world of sports. And with multiple angles and a multi-view view being streamed live, both the fans and players will be asking you to see the highlights.

Now your school can host live, multi-angle livestreams of the classroom, pep rallies, special performances, club activities – whatever’s going on that week. And at the center of it all is YoloBox.

Take corporate events to the next level by streaming quarterly meetings from multiple angles and with minimal effort. YoloBox makes it easy for your company to create live-switched, multi-angle video from almost anywhere.

What else you can do with YoloBox
  • Real Estate
  • Cooking
  • Marketing
  • Sales
  • Nonprofit
  • Events

  • Switcher with integrated encoder
  • 2 HDMI IN: Video input
  • 1 USB OUT: Video output
  • HDMI OUT: Video input
  • 3.5 mm audio line in
  • RTMP
  • Record to an SD card or USB external drive
  • Ethernet: Connect to Internet by Ethernet cable
  • AUDIO IN: Connect with lavaliar microphone or mixer
  • TYPE-C: Power connector
  • AUDIO OUT: Connect with headphone for sound monitor
  • Sim Card Slot: Insert SIM Card to get into Internet
  • HOTSHOE: Mount YoloBox with camera
  • SD Card: Insert SD card for local assets
  • Power Button: Turn on and turn off

Dimensions and Weight
  • Length:185mm
  • Width:107mm
  • Height:19.5mm
  • Weight:480g
Encoded Format

  • Video Encoded Format:H.264
  • Audio Encoded Format: AAC (48k)
  • Video Recorded format: MP4
  • Audio Input Format: 32kHz, 44.1kHz, 48kHz, 16-bit
  • Video Input Format: 1080i/ 720p/ 1080p
  • Live Broadcast Resolution: 480P/720P/1080P
Video Storage

  • Storage Card Type: SD Card
  • Storage Card Capacity: Expanded to 128G
Network Connection

  • WiFi: 2.4G/5G, Support 802.11a/b/g/n/ac
  • 4G Network Countries & Frequency Band

For US/Canada/Mexico Users:


For Non-US/Canada/Mexico Users:


SIM Card Size: Standard SIM Card

Power Interface: Type C, Quick Charge 3.0
Battery Capacity: 3.7V/5700mAh

Network Protocol: RTMP(S)

Working Environment
  • Operating Temperature:-10℃-40℃
  • Storage Temperature: 5℃-40℃

Related Products

YOLOBOX PRO, Multi-Camera Live Streaming Studio, Encoder Switcher Recorder Monitor All In One
Price: $1,299.00
YOLOBOX PRO, Multi-Camera Live Streaming Studio, Encoder Switcher Recorder Monitor All In One
YoloBox Pro is a video switcher, encoder/streamer, monitor, recorder and audio mixer all in one Bigger screen and more HDMI inputs than it's little brother - the YOLOBOX.
