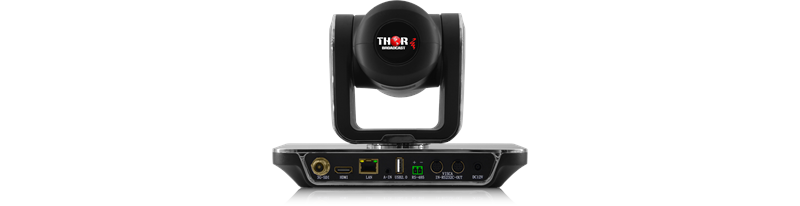

MaximusProX, PTZ 20x Zoom Live Streaming HD 1080p Camera with SDI-HDMI-USB Outputs, from Thor Broadcast

<< Previous in Cameras-Specialty Next in Cameras-Specialty >>

Price: $995.00
Item Number: MaximusProX
Manufacturer: Thor Broadcast
Manufacturer Part No: MaximusProX
Broadcast grade video PTZ camera with advanced video image processing technology and HD CMOS Sensor with multiple video output formats


Professional Broadcast Full HD up to 1080p/59.94/60hz
HDMI output
HDSDI output
USB Output
IP Streaming output, RTMP, RTSP ( direct streaming to youtube, Facebook, and other services or software running on the PC like OBS)
Web viewing and control of all outputs at the same time
POE Power over Ethernet
PTZ -20X zoom
Remote control included
Works with any PTZ controller including Thor PTZ controller MaximusControl
Approx 2.38 Megapixel picture presentation, true-color image quality.
Supports USB one-click local storage function, and one-click and 3G-SDI\HDMI\IP Streaming video simultaneous output. H.264/H.265 super decoding with low bandwidth transmission demand
Built-in audio interface, suitable for high frequency sound & AV live Streaming and Recording.
Application to LIVE Streaming & Broadcasting, Conferencing, Education, Telemedicine, AV Media Projects.
Devices like this can be ideal and resourceful for distance broadcasting.

  • Multiple Protocols: Built-in VISCA, PELCO P/D, ONVIF
  • Simultaneous multi-interface video output: Supports 3G-SDI / HDMI / IP Streaming (RTSP, RTMP)
  • Remote Control: Support RS485 / RS232 / LAN (VISCA Over IP) & remote control for communication
  • Ultra Quiet hardware structure design with accuracy up to 0.01°: Ultra-quiet pan/tilt design, horizontal 178 degrees, vertical -30°~+90° rotation. All-aluminum compact structure design, high precision stepper motor drive, accuracy 0.01°
  • Support Audio Input: Built-in 3.5mm Jack audio input interface & G.711, G.722, G.722.1, G.728, G.722.1C AAC Audio Encoding
  • IP Streaming: TCP/IP, HTTP, DDNS, UDP, RTSP, RTMP, SMTP, UPnP, SNMP, FTP(Optional)
  • Local Audio & Video Storage: USB2.0 Port for local storage & recording with one-click to record
  • Smart Menu & GUI Interface: Easy to enter menu & settings, the camera has a Desk GUI interface for video previews
  • 20X Optical Zoom with wide horizontal of view 65°: The camera has advanced video image processing technology & full HD 1/2.8" CMOS Sensor, 20X Optical Zoom, Max resolution up to 1080P@60fps
  • 2D/3D Noised Reduce function: The Camera menu has 2D/3D noise reduction
  • Broadcast grade video output format: The Camera video output format can available for 1080P60/59.94/50/30/29.97/25, 1080I60/59.94/50fps/30/25; 720P/60/50
  • Diversified installation design: Supports Mirror & Flip, and has easy Ceiling / Wall Mount / Tripod / Desk Installation
  • Includes Wall Mount Bracket
  • Warranty: 2Yrs
