<< Previous in Modulators Next in Modulators >>

Price: From $2,095.00 to $5,995.00
Manufacturer: Thor Broadcast
Manufacturer Part No: PETIT-RM

Product Options

Number of Channels Needed:
Choose from 4,6,8,10, or 12 Channel Kits

Perfect HD up to 1080P/60 HDMI to Coax RF Digital Modulator with Network Ethernet Control
The most unique and cost-effective Networked Digital HDMI RF modulator. Designed to allow any HDMI source like an STB, satellite receiver, HDMI camera, DVD player, Computer, and a ROKU device.You can convert to any RF TV channel of your choice.

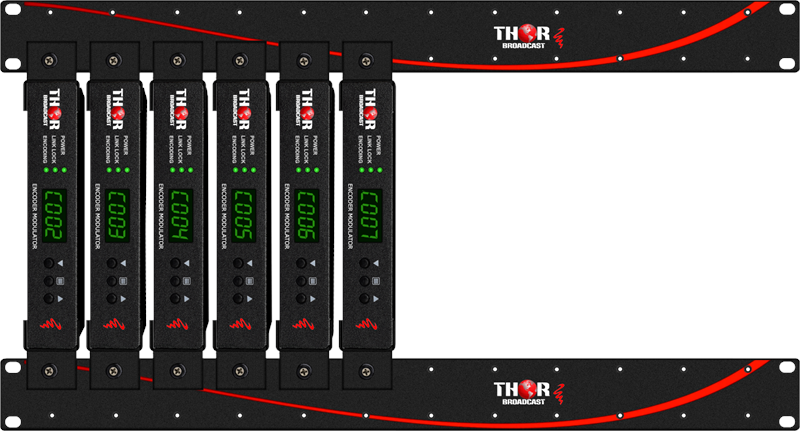

With the Modulator Rack, you get all the great features you love about the Petit bundled together in groups from 2-12 Petits. This is perfect for CATV modulation applications in bars, restaurants and any other place that needs up to 12 different HDMI signals modulated throughout their facility.

When you order a Thor Chassis System with any amount of modulators, you will get the horizontal rack bars, and enough rack ears for the amount of units purchased in your set. You just need to attached the horizontal bars to your 1RU Rack, followed by adding the rack ears to each Petit, and then using screws to fasten the Petit's into the horizontal bars. As with all of Thor Broadcast units, we will gladly handle presetting the units if you so wish, so once you add the units into the rack, plug in the power supplies, HDMI, and RF cables, you'll be ready to launch your RF system in no time.

This Thor Modulator is an all-in-one device integrating  HD MPEG2 encoding with AC3 Dolby Audio with an internal digital modulator. Converts HD audio/video signals from any device into DVB-C/ DVB-T/ ATSC/ ISDB-T RF output.
The unit supports any HD source with the following video resolutions: 720p, 1080i, 1080p

Simply connect to any PC and control the unit via Thor Broadcast's proprietary GUI which has been touted as being the best on the market.

This unit is plug and play and has exceptional quality for a very low price to help anyone with any budget create their very own RF channel which can be viewed on thousands of televisions simultaneously.

Below is an image of the back of the 6 channel rack mount unit.
